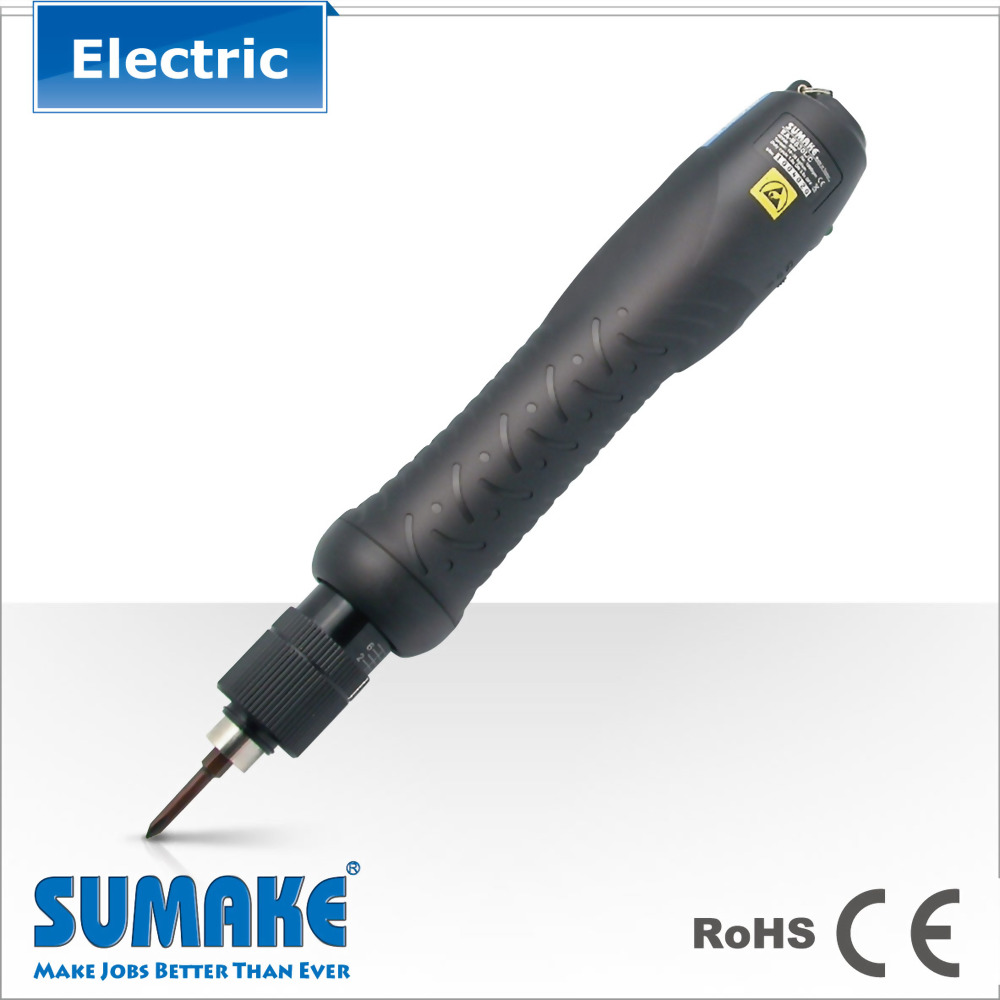

Push To Start Type, 0.98-4.90 N.m
♦ Innovative Brushless motor design eliminates carbon dust and low noise pollution; results in low maintenance.
♦Torque range from 1.5kgf.cm~50kgf.com cover small & medium screwdrivers.Widespread and extensicely applied by user.
♦ Compact LED counter built-in: easy to operate, complete function; user can set up the counter according to needs of work and leave system automotive to imspect the precision of fastening screws.
♦Suitably used on production line and effectively control numbers of fastening screws and operation quality.
♦Automatic learning can count complete necessary time from start to fastening, users can select another wire to connect PLC if necessary.
♦Two-color housing, ergonomic design, easy to grip.
♦Torque accuracy ±3%
Model
No.
Torque
Range±3%
Unloaded
Speed ±10%
(r.p.m.)
Available Screw
Net
Weight
Overall
Length
Power
Source
Power
Consumption
Bit Type
Machine
Screw(ø)
Tapping
Screw(ø)
Kgf-cm
lbf-in
N.m
High
Low
mm
in
mm
in
g
lb
mm
in
Lever Start Type
EA-BN630L/C6
10-30
8.68-26.04
0.98-2.94
1000
750
2.6-4
0.1-0.16
2.6-3.5
0.1-0.14
800
1.77
275
10.82
DC40V
90W
A:HEX
5mm
B:HEX
6.35mm
EA-BN630LH/C6
10-30
8.68-26.04
0.98-2.94
2000
1500
2.6-4
0.1-0.16
2.6-3.5
0.1-0.14
800
1.77
275
10.82
DC40V
90W
EA-BN650L/C6
20-50
17.36-43.4
1.96-4.9
1000
750
4-5
0.16-0.2
≦4
≦0.16
800
1.77
275
10.82
DC40V
120W
B:HEX
6.35mm
Push To Start
Type
EA-BN630P/C6
10-30
8.68-26.04
0.98-2.94
1000
750
2.6-4
0.1-0.16
2.6-3.5
0.1-0.14
800
1.77
275
10.82
DC40V
90W
A:HEX
5mm
B:HEX
6.35mm
EA-BN630PH/C6
10-30
8.68-26.04
0.98-2.94
2000
1500
2.6-4
0.1-0.16
2.6-3.5
0.1-0.14
800
1.77
275
10.82
DC40V
90W
EA-BN650P/C6
20-50
17.36-43.4
1.96-4.9
1000
750
4-5
0.16-0.2
≦4
≦0.16
800
1.77
275
10.82
DC40V
120W
B:HEX
6.35mm
