1/4"Hex Screwdriver, 35-42 Nm
♦Automatic pressure release device : with higher efficiency (Patent Pending)
♦O-Ring Pin (Standard):Fixed socket with retainer and o-ring. Highly recommended option when sockets does not need to be changed frequently.
♦Retaining Pin (Optional):Highly recommended when sockets need to be changed often.
♦PAT.P. :Special designed sealing can prevent oil-leaking under high pressure.
♦Ellipse handle fits better between thumb and index fingers when grasping the tool.It reduces slippery of tool during screwing down procees, it also has anti-reaction-force effect.
♦Inner-built silencer provides a operator-friendly working enviroment.

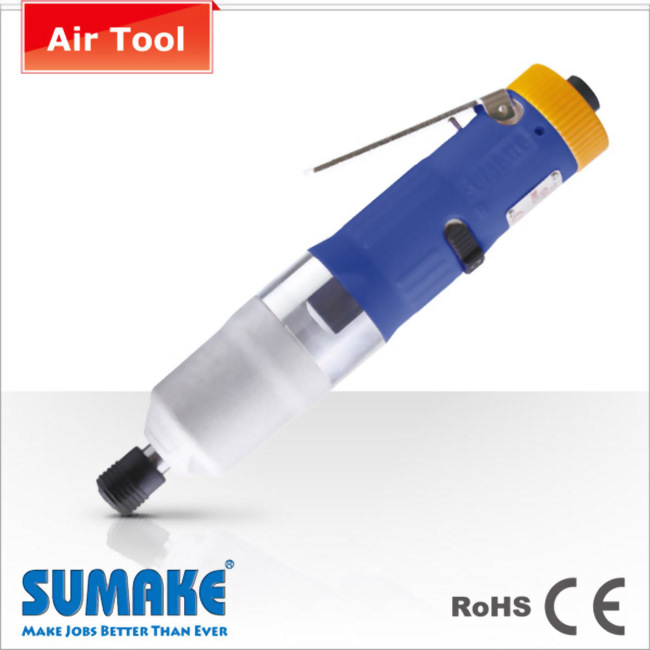

1/4" Non Shut-off Air Oil Pulse Screwdriver- 28-35 Nm
|
Model No. |
Square (Hex) (inch) |
Capacity Bolt Size (mm) |
Torque Range (5-6 bar) |
Free Speed (6 bar) (rpm) |
Air Inlet (PT) |
Rec. Hose Size (mm) |
Sound Pressure (dB(A)) |
Air Consumption |
Overall Length |
Net Weight |
||||
|
Nm |
ft-lbs |
cfm |
I/min |
inch |
mm |
lbs |
kgs |
|||||||
|
IPS-2235N |
1/4Hex |
8 |
35-42 |
25.9~31.1 |
5,900 |
1/4” |
8.0 |
80 |
15.9 |
450 |
9 |
230.5 |
1.7 |
0.77 |
※Recommend Air Pressure 5~6bar (72.5~87psi)
