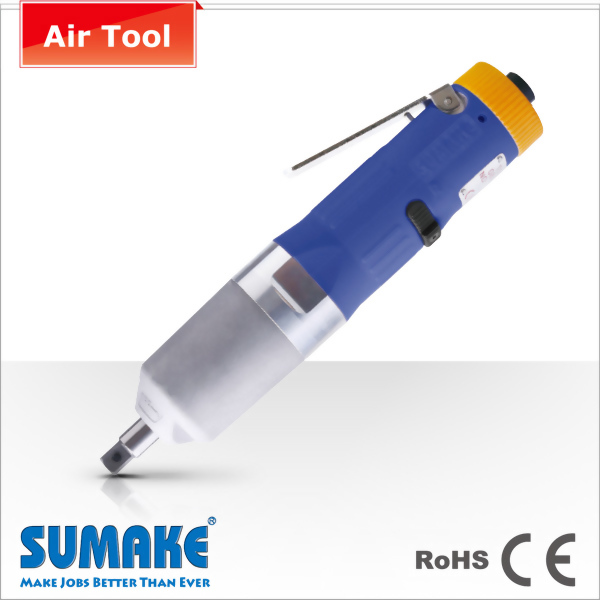

3/8" Wrench, 60-90 Nm.

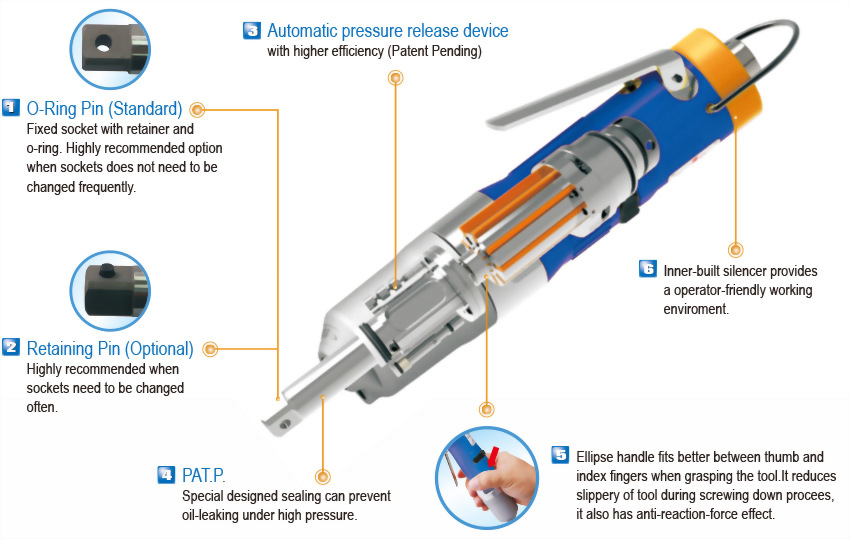

● Automatic pressure release device : with higher efficiency (Patent Pending)
● O-Ring Pin (Standard):Fixed socket with retainer and o-ring. Highly recommended option when sockets does not need to be changed frequently.
● Retaining Pin (Optional):Highly recommended when sockets need to be changed often.
● PAT.P. :Special designed sealing can prevent oil-leaking under high pressure.
● Ellipse handle fits better between thumb and index fingers when grasping the tool.It reduces slippery of tool during screwing down procees, it also has anti-reaction-force effect.
● Inner-built silencer provides a operator-friendly working enviroment.
|
Model No. |
Square (Hex) (inch) |
Capacity Bolt Size (mm) |
Torque Range (5-6 bar) |
Free Speed (6 bar) (rpm) |
Air Inlet (PT) |
Rec. Hose Size (mm) |
Sound Pressure (dB(A)) |
Air Consumption |
Overall Length |
Net Weight |
||||
|
Nm |
ft-lbs |
I/min |
cfm |
mm |
inch |
kgs |
lbs |
|||||||
|
IPW-2370N |
3/8 |
10 |
60-90 |
44.3-66.4 |
5,900 |
1/4” |
8.0 |
80 |
480 |
17 |
247 |
9.72 |
1.25 |
2.76 |
※Recommend Air Pressure 5~6bar (72.5~87psi)
