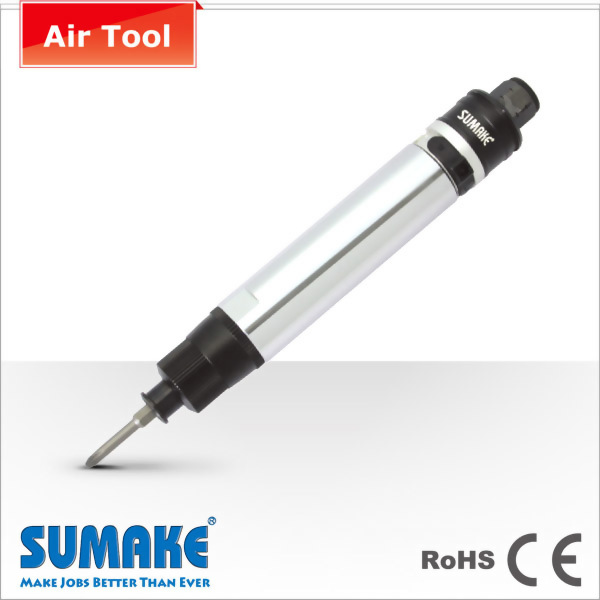

Air Nutrunner, Forward & Reverse Type (Immediate & Automatic Air Shut-Off)
Air Nutrunner Air Start Shut-off,Forward & Reverse type (Forward for SMNP type)
Model
No.
Free
Speed
(r.p.m.)
O.A.L.
(mm)
Dia
(mm)
Air Hose Bore
Air
consumption
(m³/min)
Torque
Range
Vibration
Level
(ms²)
Standard
Deviation
(%)
Fastening Capacity
6.0kg/cmᶾ
5.0kg/cmᶾ
Nm
Kgf-cm
Machine Screw Dia.
Tapping Screw Dia.
T
2T
SM(N)P10
1000
196
30
5.0
6.35
0.20
0.05-0.2
0.5-2
<1.0
±3
M1.0-M2.2
M1.1-M1.7
SM(N)P20
1000
196
30
5.0
6.35
0.20
0.1-0.8
1-8
<1.0
±3
M1.7-M3.3
M1.3-M2.7
SM(N)P30
1800
196
30
5.0
6.35
0.28
0.3-1.7
3-17
<1.0
±3
M2.2-M4.2
M1.6-M3.2
SM(N)P35
2200
196
30
5.0
6.35
0.28
0.3-2
3-20
<1.0
±3
M2.4-M4.5
M2.0-M3.5
SM(N)P40
1000
196
30
5.0
6.35
0.28
0.5-3
5-30
<1.0
±3
M2.8-M5.0
M2.3-M4.0
SM(N)P45
800
196
30
6.35
8.0
0.30
0.8-4
8-40
<1.0
±3
M3.0-M5.7
M2.7-M4.4
Model
No.
Free
Speed
(r.p.m.)
O.A.L.
(mm)
Dia
(mm)
Air Hose Bore
Air
consumption
(m³/min)
Torque
Range
Vibration
Level
(ms²)
Standard
Deviation
(%)
Fastening Capacity
6.0kg/cmᶾ
5.0kg/cmᶾ
Nm
Kgf-cm
Machine
Screw Dia.
Tapping
Screw Dia.
T
2T

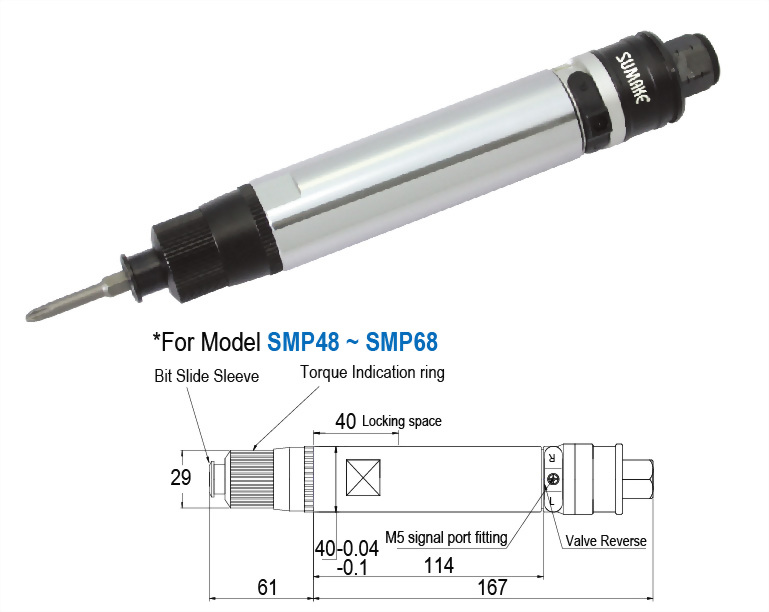

SM(N)P48
1700
228
40
8.0
9.5
0.55
0.
5-4.5
5-45
<2.5
±3
M2.8-M5.8
M2.3-M4.7
SM(N)P50
1400
228
40
8.0
9.5
0.55
0.7-5
7-50
<2.5
±3
M2.9-M6.0
M2.6-M4.9
SM(N)P55
1000
228
40
8.0
9.5
0.55
0.7-6.5
7-65
<2.5
±3
M2.9-M6.4
M1.6-M3.2
SM(N)P60
550
228
40
8.0
9.5
0.55
1.5-9.5
15-95
<2.5
±3
M4.1-M7.0
M3.3-M6.0
SM(N)P65
300
228
40
8.0
9.5
0.55
3-18
30-180
<2.5
±3
M5.0-M9.3
M4.0-M7.2
SM(N)P68
250
228
40
8.0
9.5
0.55
5-28
50-280
<2.5
±3
M6.0-M11.0
M4.9-M8.7
