AIR CORPS SAW ( réduction des vibrations ) - BOITIER PLASTIQUE

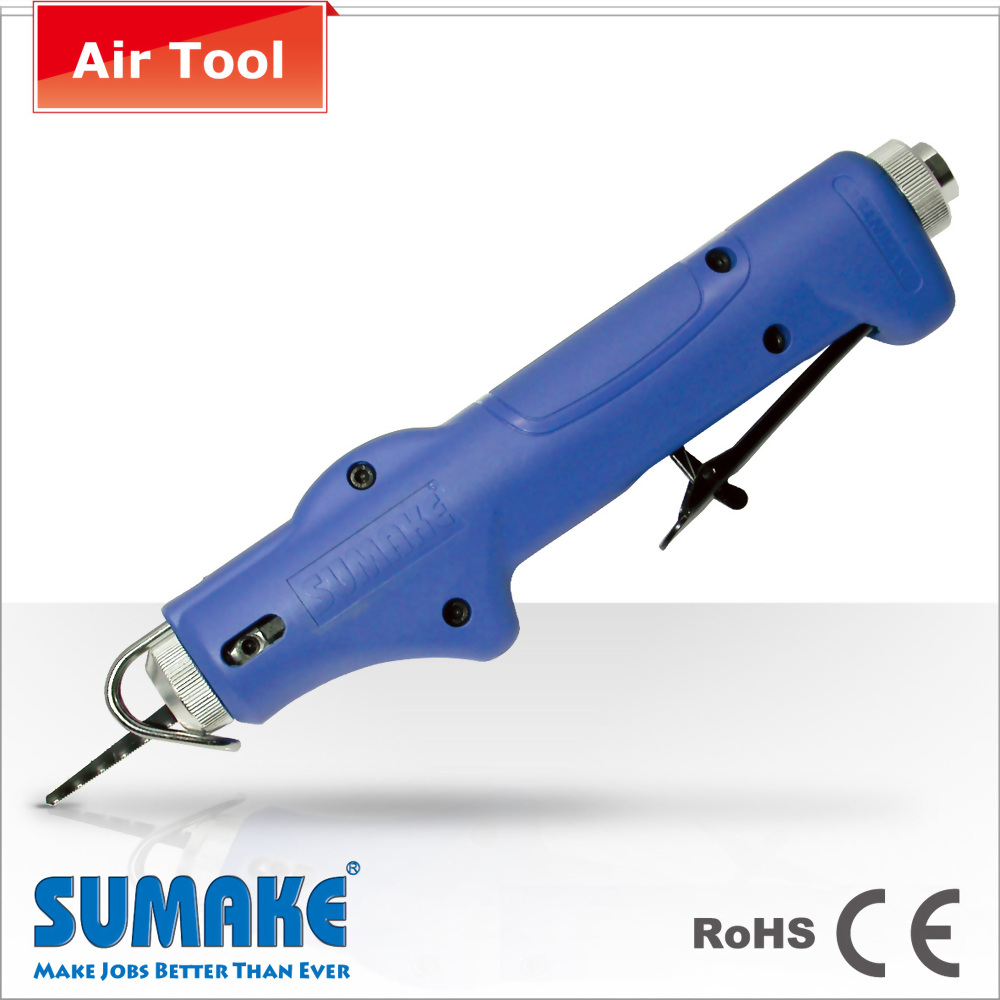

AIR BODY SAW W/18T,24T,32T BLADES (VIBRATION REDUCTION)
- PLASTIC HOUSING
Model ST-66005
|
Model# |
ST-66005 |
|
Blow per minute |
9,500 bpm |
|
Cutting capacity thickness |
2.9mm (Steel), 3.3mm (Aluminum)
|
|
Stroke length |
10mm |
|
Air consumption |
6 CFM |
|
Net weight |
0.51 kg |
|
Overall length |
263 mm |
|
Air inlet size |
1/4" PT or NPT |
|
Air hose size |
3/8" (O.D) |
|
Vibration |
9 m/s² |
|
Sound pressure |
85 dBA |
Packing: 20pcs/Ctn/11kg/1.8 cuft
* CE Approved.
Accessories included:
- 18T Blade
- 24T Blade
- 32T Blade
- 3mm Hex Wrench
- 3920A 1/4"M x 1/4"F
Universal Swivel Air Inlet Joint (Alum. Alloy)
Feature:
* Designed with following patents to assure Extreme Low Vibration and operator comfort.
1) Portable pneumatic tool assembled with module units.
2) Suspension Vibration-Reducing means for portable pneumatic tools.
* Patented quick change Blade Holder makes changing saw blades/files easy.
* Patented Universal Swivel air Inlet Joint equipped for the best tool maneuverability.
* Adjustable Guard/Guide allows operators to set depth of cut.
* Rear exhaust directs air away from work-piece.
* The most efficient heavy duty air saw among compatible models in the field.
* Lock off Throttle to prevent accidental start ups.
* Engineering plastic made Clam-Shell Housing designed for easy service.
