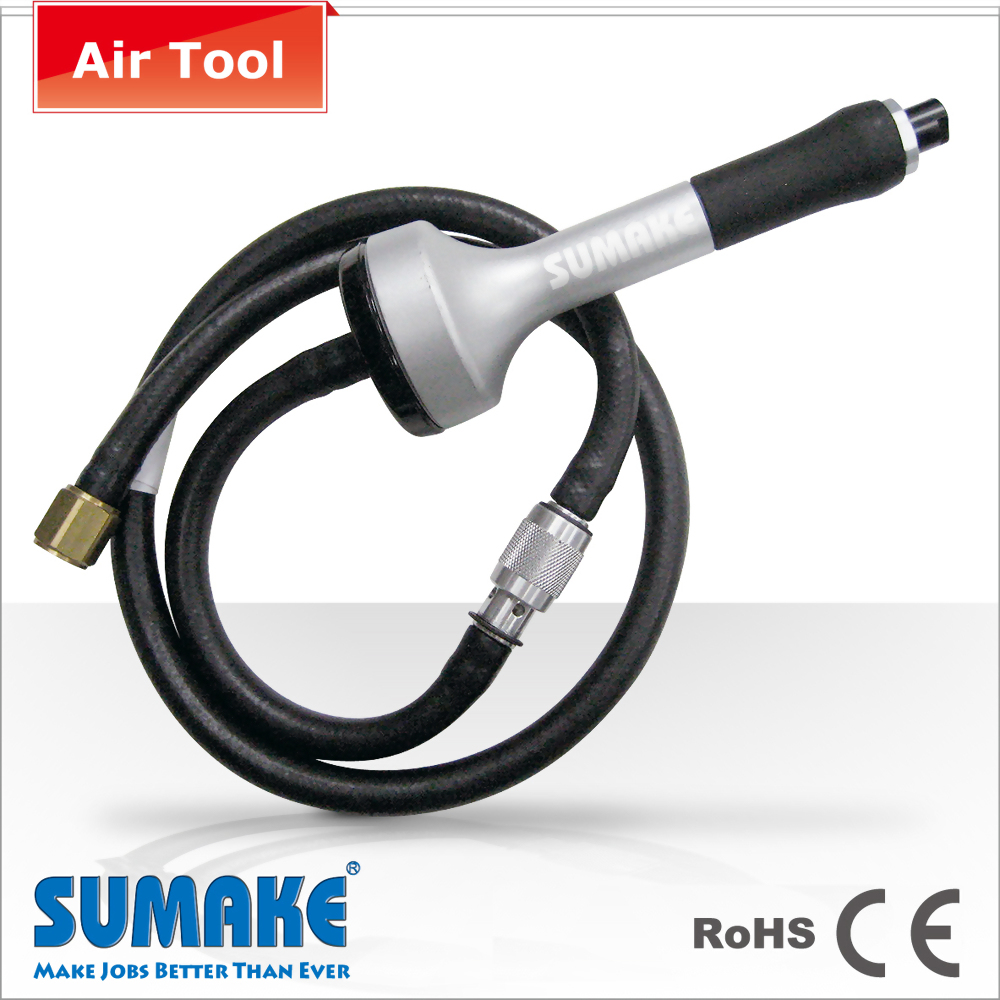

Turbine 1/8 "moules Gravure meuleuse
Turbine 1/8 "moules Gravure meuleuse
|
Model # |
ST-7442-35 |
|
Collet size |
1/8" (3mm) |
|
Power |
0.45 HP (336W) |
|
Free Speed |
35,000 RPM |
|
Max Torque |
120 ft-lb (163 Nm) |
|
Overall Length |
13.8”(350mm) |
|
Air Inlet |
1/4" |
|
Air Hose |
3/8" |
|
Air Consumption |
12 cfm (340 l/min) |
|
TIR Collect held shank |
<0.02" (<0.05mm) |
|
Sound level |
<75 dB(A) |
|
Net weight |
0.206 kg |
|
Volume (HxL) |
53x 172 mm2 |
Packing: 12pcs/Ctn/10.3kgs/2.6 cuft
Feature
*Light weight, big power, high speed, low air consumption, oil free and seldom maintenance.
*High speed ceramic bearings and high precision components manufactured to the highest standards.
*Variety of configurations to meet all application.
*With motor patent for Turbo design.
* Ideal for fast accurate close proximity
work-from deburring, mold making and engraving.
